This design includes an internal Sleeve of stainless
steel Wire Braid which is welded at one end. As
an option, the Internal sleeve can be provied using
an interlocked / strip wound hose.

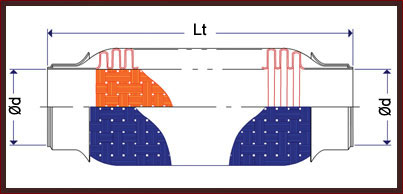

TYPE B - EXHAUST BELLOWS WITH INTERNAL LINER
TYPE A DIMENSIONS
CODE
INNER DIA Ød
TOTAL LENGTH Lt
BB 3810
38.60
100
BB 3815
38.60
150
BB 3820
38.60
200
BB 3823
38.60
230
BB 3825
38.60
250
BB 3828
38.60
280
BB 4510
44.90
100
BB 4515
44.90
150
BB 4520
44.90
200
BB 4523
44.90
230
BB 4525
44.90
250
BB 4528
44.90
280
BB 5010
50.00
100
BB 5015
50.00
150
BB 5020
50.00
200
BB 5023
50.00
230
BB 5025
50.00
250
BB 5028
50.00
280
CODE
INNER DIA Ød
TOTAL LENGTH Lt
BB 5510
54.50
100
BB 5515
54.50
150
BB 5520
54.50
200
BB 5523
54.50
230
BB 5525
54.50
250
BB 5528
54.50
280
BB 5810
58.00
100
BB 5815
58.00
150
BB 5820
58.00
200
BB 5823
58.00
230
BB 5825
58.00
250
BB 5828
58.00
280
BB 6510
65.00
100
BB 6515
65.00
150
BB 6520
65.00
200
BB 6523
65.00
230
BB 6525
65.00
250
BB 6528
65.00
280
All dimensions are in mm unless otherwise specified. Subject to change without notice
