UNIWATER

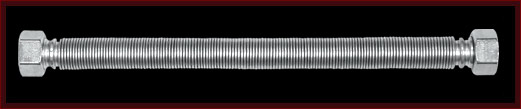

EXTENSIBLE FLEXIBLE FITTINGS IN SS 316L
Design features:
Semi rigid Extensible Flexible Fittings made using tube of stainless steel 316L fitted on both ends with nickel plated brass swivel nuts. The joining of the parts is made with special tools. These Flexible Fittings are also available with both ends fitted with self locking nut of stainless steel. Used for connection of the water supply to sanitary fittings, boilers, both baths etc.


F.G. F.G.
CODE
THREAD SIZE
DN
LENGTH
MIN/MAX
66120 1/2" 15 075/130
66121 1/2" 15 125/250
66122 1/2" 15 175/350
66123 1/2" 15 250/500
F.G. F.G.
CODE
THREAD SIZE
DN
LENGTH
MIN/MAX
66200 3/4" 20 075/130
66201 3/4" 20 125/250
66202 3/4" 20 175/350
66203 3/4" 20 250/500

All dimensions are in mm unless otherwise specified. Subject to change without notice
